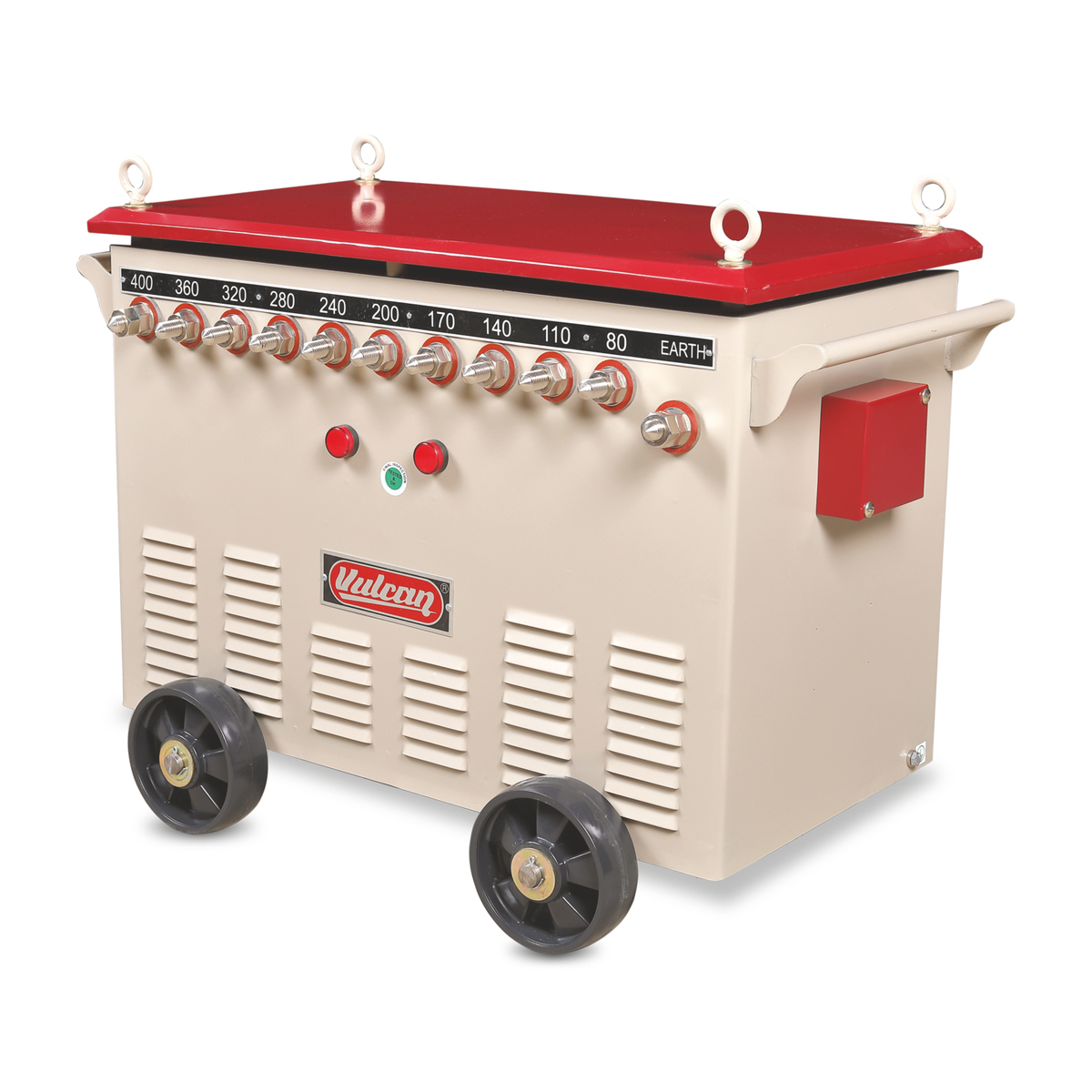

Stud-Type ARC Welding Machine, 300–600A, Two-Phase, Transformer

Machine Type Input Supply Output Type Output CC or CV Works on Power

Salient Features :

  • Modern looks, novel design concepts.
  • Epoxy powder coated body for rust free long life.
  • Coil varnishing by vacuum pressurized impregnating varnishing system to enhance reliability and services life
  • High efficiency, energy saving, low maintenance

Specifications

Parameters Unit SH30AA SH30AF SH40AA SH40AF SH60AA SH60AF
Input Supply V 415 V ± 10% 415 V ± 10% 415 V ± 10% 415 V ± 10% 415 V ± 10% 415 V ± 10%
Phase 2 2 2 2 2 2
Frequency Hz 50 50 50 50 50 50
Open Circuit Voltage (OCV) V 60 60 60 60 60 60
Insulation Class A H A H A H
Welding Current Range A 70 – 300 70 – 300 80 – 400 80 – 400 120 – 600 120 – 600
Duty Cycle % 60 % 60 % 60 % 60 % 60 % 60 %
Ingress Protection Class IP21S IP21S IP21S IP21S IP21S IP21S
Cooling Natural Air Cooled Natural Air Cooled Natural Air Cooled Natural Air Cooled Natural Air Cooled Natural Air Cooled
Dimension (L x W x H) mm 830 x 520 x 640 830 x 520 x 640 830 x 520 x 640 830 x 520 x 640 595 x 940 x 650 595 x 940 x 650
Weight kg 105 105 125 125 150 150
Confirm To IS 1851 : 1997 IS 1851 : 1997 IS 1851 : 1997 IS 1851 : 1997 IS 1851 : 1997 IS 1851 : 1997

Note : We reserve the right to modify the equipments and change the specifications without prior notice as a part of the continuous development research policy.

Scope & Applications

  1. “VULCAN” Stud Type heavy duty welding machines are reliable for dynamic output throughout the entire welding current range. Sturdy and proven construction to withstand extra-ordinary welding environment. Extensively used for light and medium duty structural work, fabrication and machine building. Natural air-cooled design ensures non-stop performance even in the complex conditions.
  2. Stud type heavy-duty air-cooled arc Welding transformer Is designed for light, medium and heavy duty welding In metal fabrication industry.
  3. It is stud type machine Ideally suited for all general purpose heavy production work and ‘outdoor fabrication site jobs in metal fabrication. High open circuit Voltage (OCV) enables welding with all types of special electrodes. The weld qualities of these machines are smooth and soft with minimum spatter.
  4. Easy Arc striking smooth and stable Arc are additional advantage of higher OCV’s. Also higher OCV enables use of longer welding cables without problems of welding lead resistance drop. It is dependable, sturdy of fully tropicalised design and has an attractive appearance. A series choke and suitable taps for best results achieve welding current regulation. Variable current regulation, sturdy wheels and lifting I bolts and indicator lamps are also provided. Hence, the machine is easily manoeuvrable from job to job. Instant response to arcing low fluctuations, high efficiency and considerably low maintenance requirements, are other features.
  5. All standard models are with Aluminium winding, Copper winding and insulation class ‘H’ or can also be provided on customers demand.
