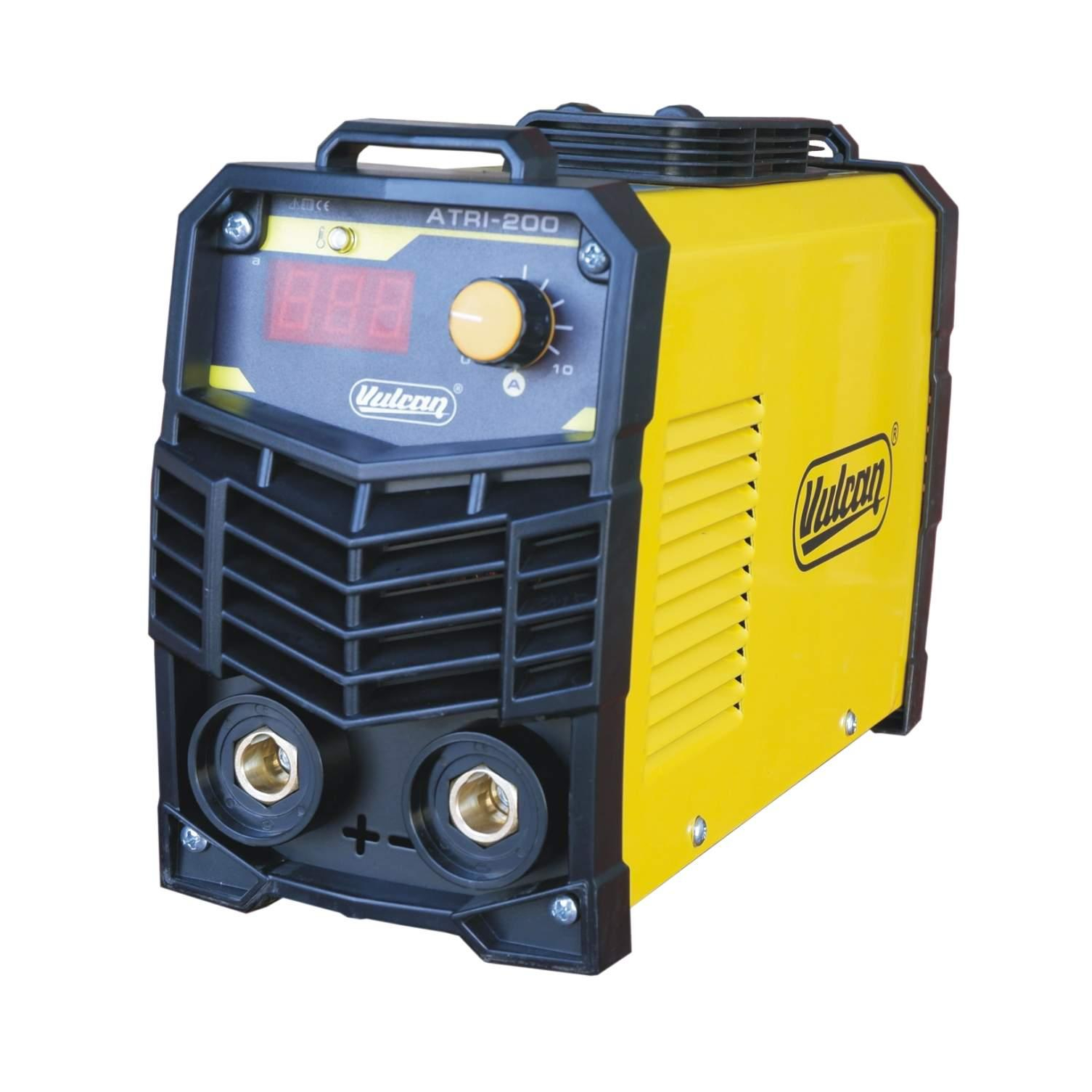

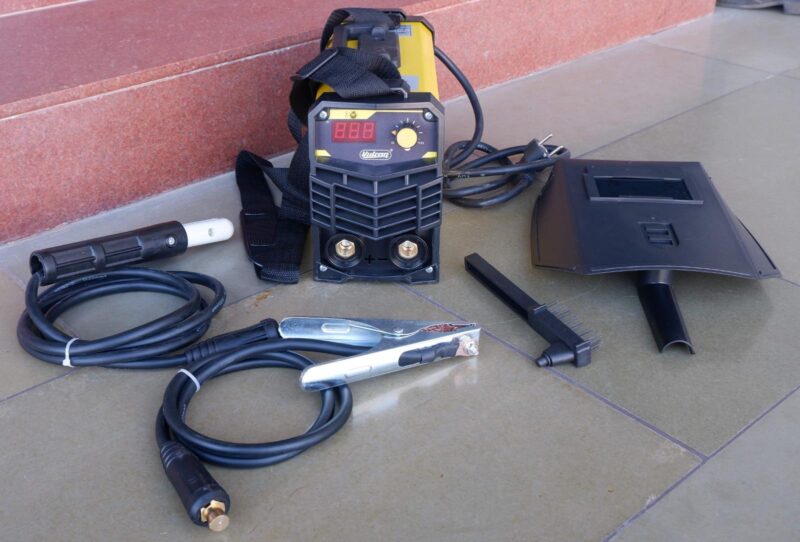

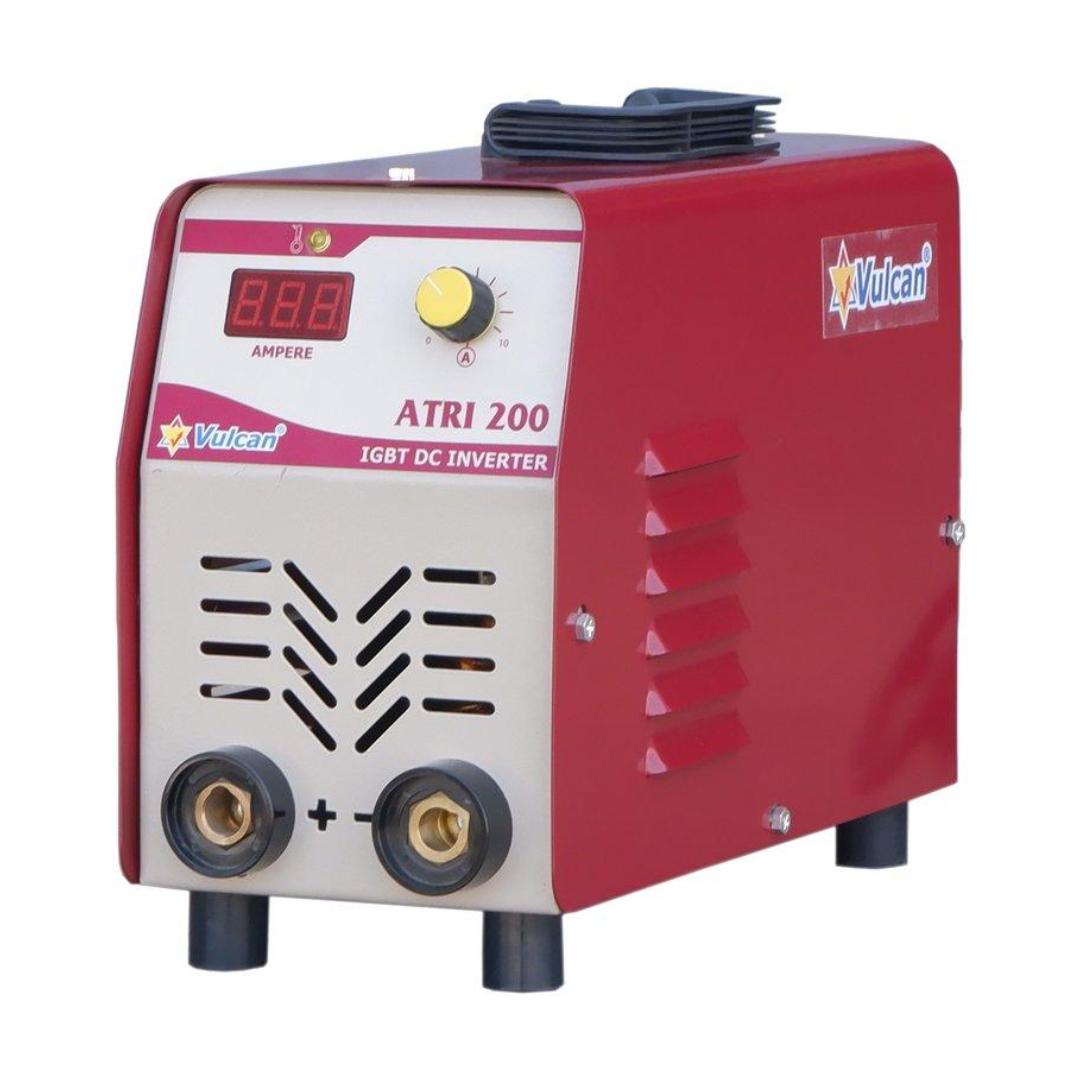

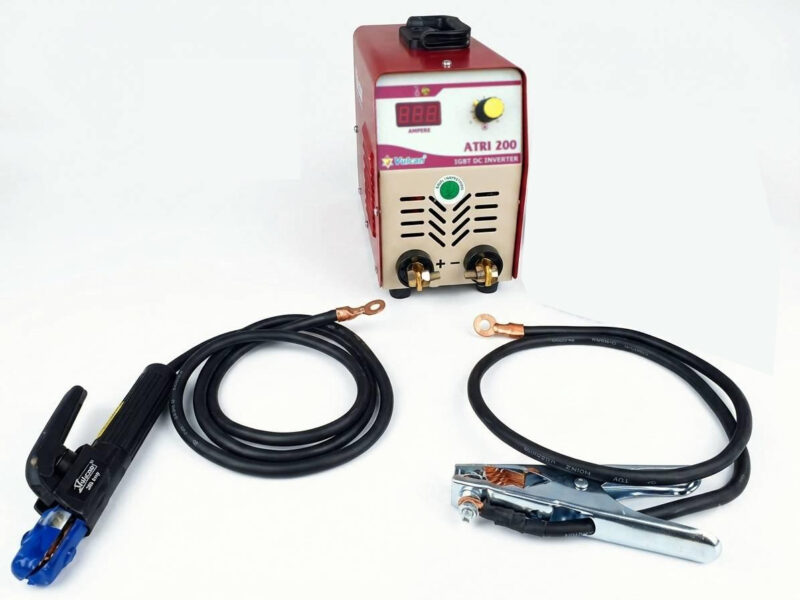

200 A Inverter Base Arc Welding (MMA) (ATRI 200)

Salient Features :

  • Portable, reliable MMA welding machines
  • High performance inverter technology
  • Highly power efficient
  • Welding current smoothly adjustable
  • Light weight and compact in size
  • Protection against thermal overloads

Specifications

Parameters Unit ATRI 200
Power voltage V 220 V ± 10%
Phase 1
Supply Frequency Hz 50
Rated Input Current A 27.0
No-load voltage V 70
Min. Output Current A 20
Max. Output Current A 200
Duty Cycle % 80 %
Efficiency % ≥ 85 %
Power Factor ≥ 0.93
Insulation Class H
Protection Class IP23
Machine Cooling Type Forced Air Cooled
Current or Voltage Regulation Type Stepless
Confirm To IS IS 4559 : 1993
Weight kg 5.5
Dimensions (L x W x H) MM 300 x 140 x 200
