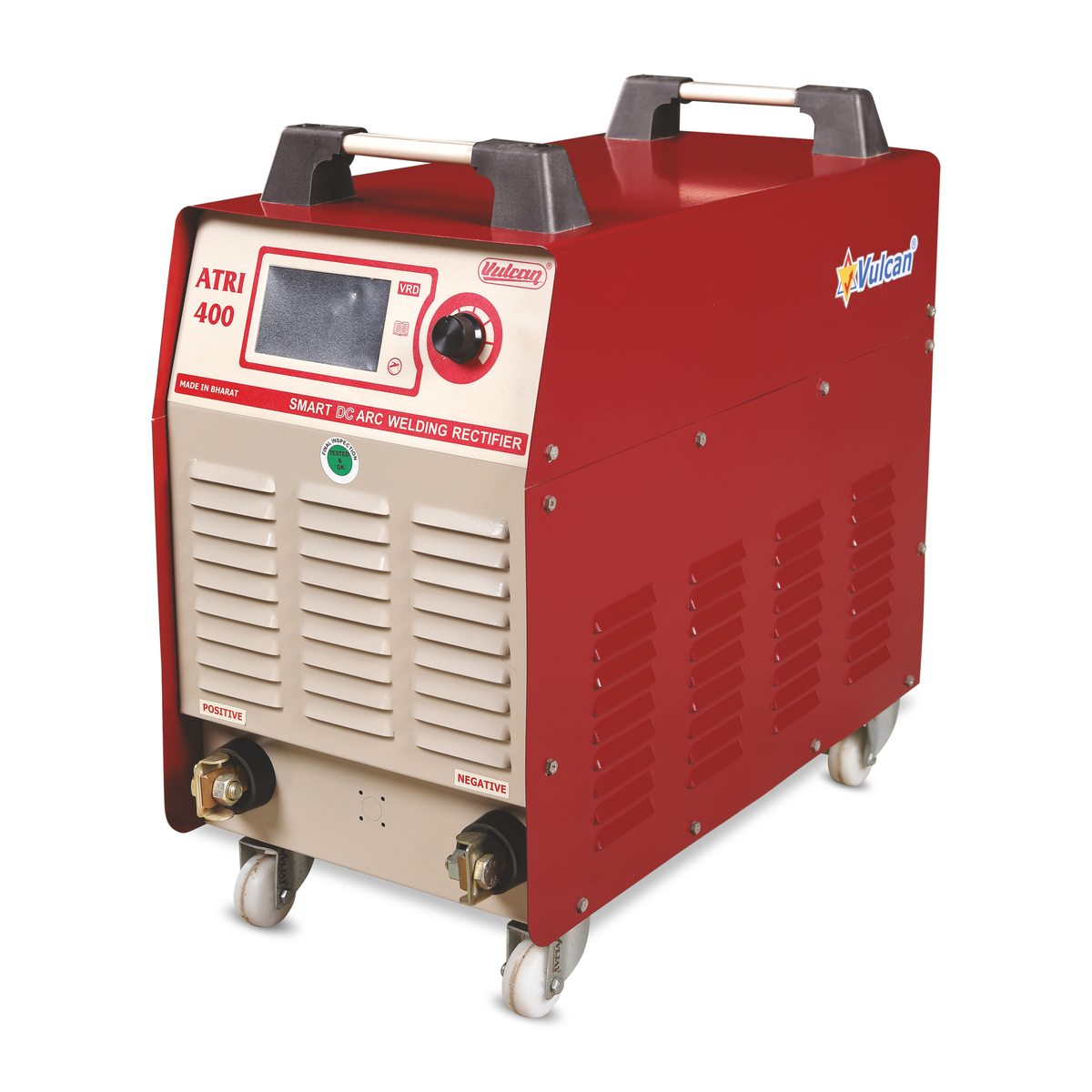

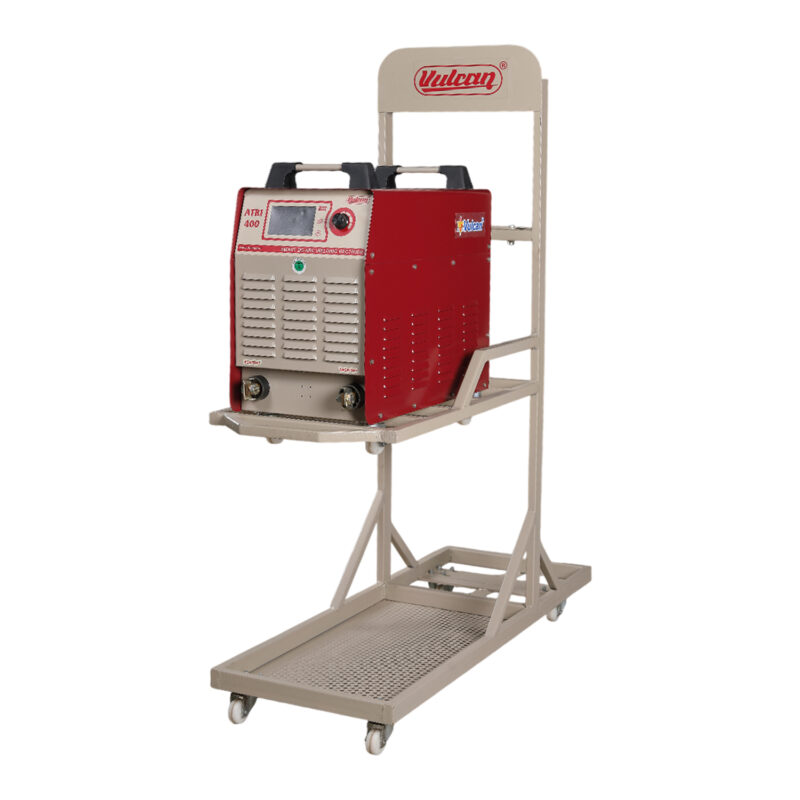

ATRI 400 S | Smart Inverter Base Arc Welding (400 Amp.) (IGBT)

Salient Features :

  • Digital Smart Arc Welding Machine
  • Human Safety with VRD Function (Voltage Reduction Device)
  • Portable, reliable MMA welding machines
  • High performance inverter technology
  • Highly power efficient
  • Welding current smoothly adjustable
  • Light weight and compact in size
  • Thermal Protection
  • Over Voltage Protection
  • Short Circuit Protection
  • Open Circuit Protection
SKU: ATRI 400 S

Specifications

Parameters Unit ATRI 400 S
Power voltage V 415 V ± 10%
Phase 3
Supply Frequency Hz 50
Rated Input Current A 28.0
No-load voltage V 70
Min. Output Current A 30
Max. Output Current A 400
Duty Cycle % 60 %
Efficiency % ≥ 85 %
Power Factor ≥ 0.94
Insulation Class H
Protection Class IP23
Machine Cooling Type Forced Air Cooled
Current or Voltage Regulation Type Stepless
Confirm To IS IS 4559 : 1993
Weight kg 29
Dimensions (L x W x H) MM 580 x 280 x 540

Scope & Applications

“VULCAN” Welding is offering a Inverter Based ARC Welding Machines to our valuable clients. These indigenous machines provide exceptional welding quality and are designed with MOSFET/IGBT technology for improving their performance and life. In conformity with the concern of international quality standards, our offered machine is sourced from our reliable vendors of the reputed industry. The machine offered by us is also examined under the supervision of talented quality controllers to ensure their flawlessness. Range of is power saving, compact in size and light in weight. Qwing to their reliable performance, our offered machine is widely used in various engineering applications, Education, Maintenance, Repair, Fabrication, Ship building/ Installation Construction and in Foundries Industries.
