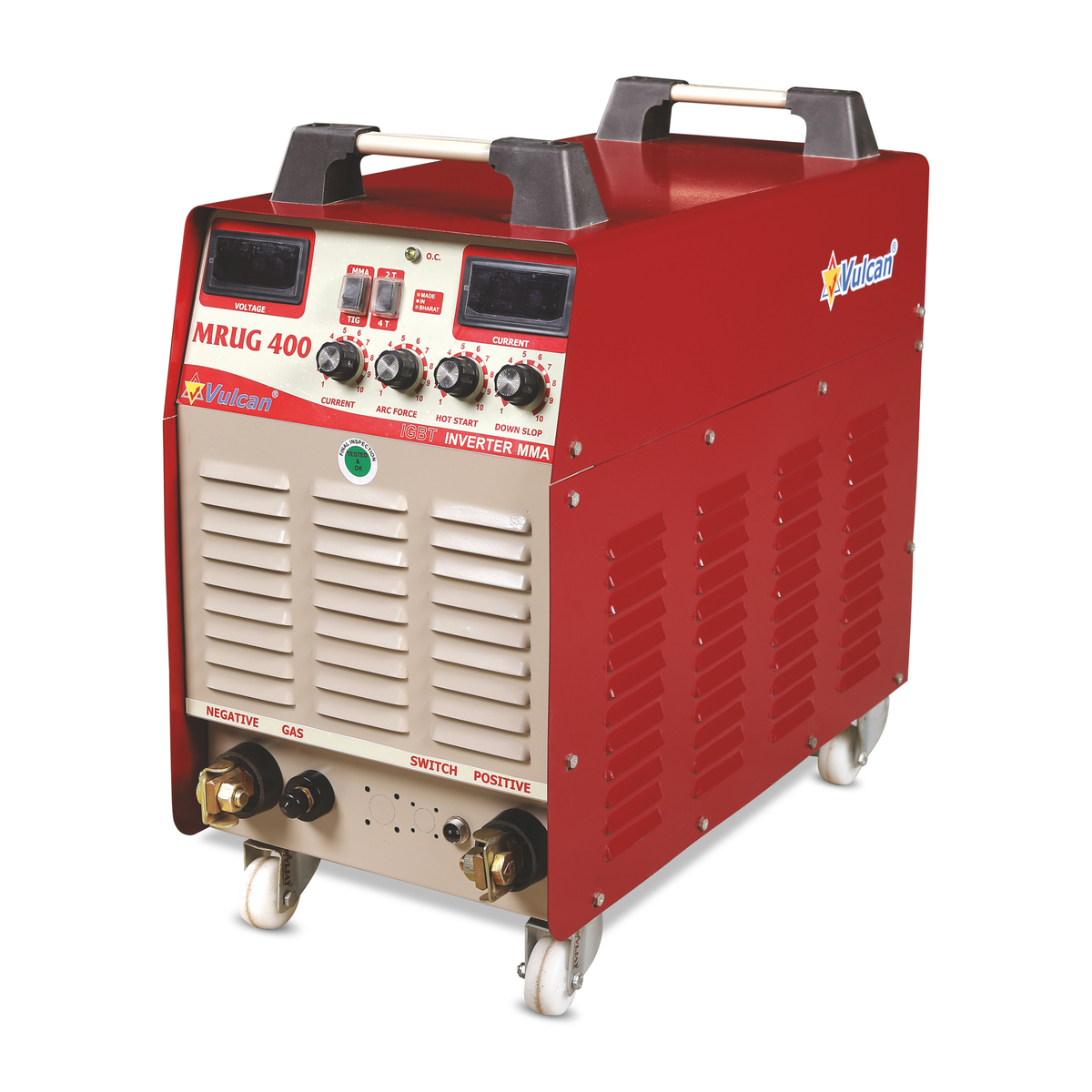

MRUG 400 – TIG (Argon) Welding Machine, 400A, Three-Phase, Inverter

Machine Type Alternate Machine Type Input Supply Output Type Output CC or CV Cooling Works on Power

Salient Features :

  • Fully Digital controlled welding.,
  • Digital Display of Welding Parameters.,
  • Stepless control of Welding current.,
  • Built in high frequency, Inbuilt protection for Under Voltage,
  • Adjustment of minimum welding
  • Light weight, compact welding machine.,
  • current is as low as 10 A (MMA) and 10 A (TIG),
  • Low energy consumption saves up to 40% power bill.

Standard Accessories :

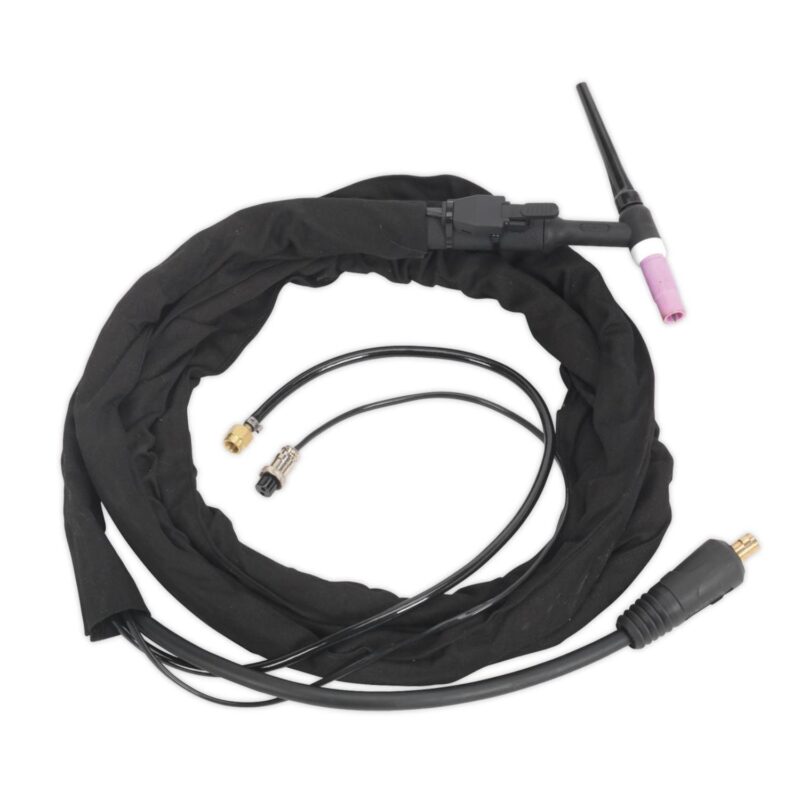

  • TIG Torch
  • Welding Cable with Welding Holder
  • Earthing Cable with Earthing Clamp

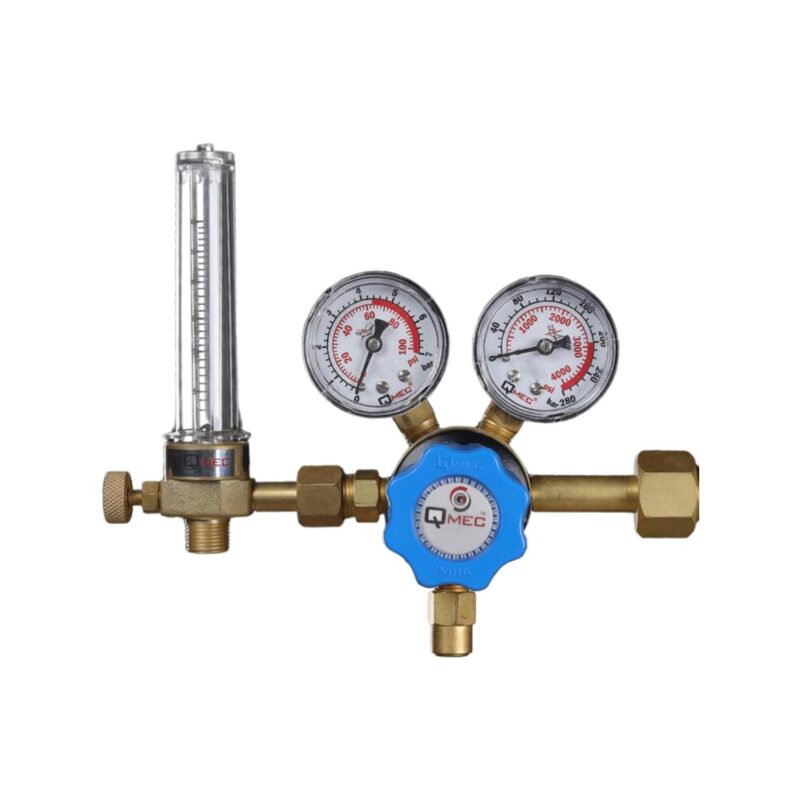

  • Argon Gas Regulator
  • Flow Meter
  • PU Pipe

Specifications

Parameters Unit MRUG 400 MRUG 600
Input Supply V 415 V ± 10% 415 V ± 10%
Phase 3 3
Frequency Hz 50 50
Open Circuit Voltage (OCV) V 60 60
Insulation Class H H
Welding Current Range A 40 – 400 40 – 600
Current Regulation Stepless Stepless
Duty Cycle % 60 % 60 %
Power Factor ≥ 0.93 ≥ 0.93
Ingress Protection Class IP23 IP23
Cooling Forced Air Cooled Forced Air Cooled
Dimension (L x W x H) mm 600 x 300 x 550 710 x 310 x 620
Weight kg 30 40
Confirm To IS 9604 : 1994 IS 9604 : 1994

Note : We reserve the right to modify the equipments and change the specifications without prior notice as a part of the continuous development research policy.

Scope & Applications

We are Experienced Manufacturer, Exporter and Supplier of TIG Welding Machines & Inverter TIG cum ARC Welding Machines with the widest range and the best quality. Qur product range also comprises of Inverter Based MMA Welding Machine, We are also provides TIG accessories and TIG Welding Equipments. Our inverter welding machines are based on fast switching MOSFET / IGBT Devices. It is replacement of conventional line frequency transformers with advantage of power saving, better power factor, These machines are capable to with stand Indian power supply conditions and also works on gensets. small & compact size, light weight and portability. Suitable for Automobile Parts, Pipe Mill, Aircraft, Furniture & Kitchenware, Atomic Energy, Instrument manufacturing Industries.
