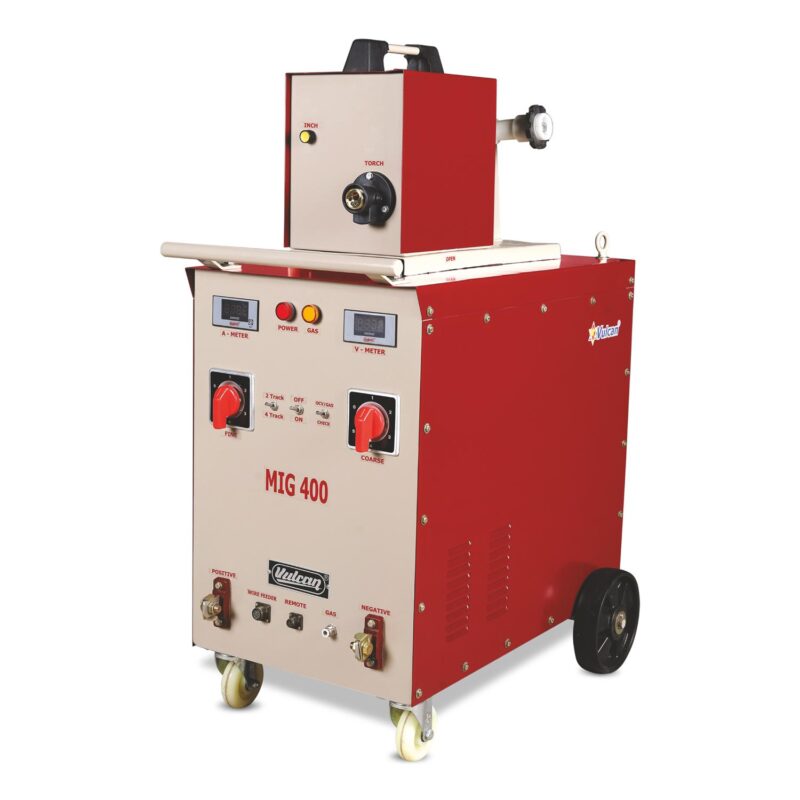

MIG/MAG Welding | Transformer Based Heavy Duty
MIG/MAG Welding | Transformer Based Heavy Duty

MIG/MAG Welding | Transformer Based Heavy Duty

Machine Type Input Supply Output Type Output CC or CV Cooling Works on Power

Salient Features :

  • VULCAN MIG Series Power Sources are real Wark Horse With high MTBF.
  • Pre-selection of OCV and Gas Flow Rate
  • Smooth, Spatter free CO2,MIG/MAG welding.
  • Excellent quality with Solid/Flux cored/SS/ Aluminum Wire.
  • Specially designed to work in Indian extreme Environment and terrain work conditions.
  • Protection against Thermal Overload.
  • Maintenance free and weld safe rugged outfit.
  • Ready to use Package – Supplied with sturdy Gun (3 MTR. long), 2/4 roll Drive wire Feeder and all accessories.
  • Reliable Wire Feed Controller.
  • Can be supplied with 5/10/15 MTR. Long interconnection cable for better accessibility at long distance welding point.
  • Heavy duty, Light weight, flexible cable, Gas/”Water Cooled Torch,
  • Unmatched Welding Performance.

Specifications

Parameters Unit VM25S VM40S VM60S
Input Supply V 415 V ± 10% 415 V ± 10% 415 V ± 10%
Phase 3 3 3
Frequency Hz 50 50 50
Open Circuit Voltage (OCV) V 36 52 54
Insulation Class H H H
Welding Current Range A 50 – 250 50 – 400 50 – 600
Welding Current @60% Duty Cycle A 250 400 600
Welding Current @100% Duty Cycle A 190 300 450
Number of Coltage Increment Steps 16 30 30
Duty Cycle % 60 % 60 % 60 %
Power Factor ≥ 0.93 ≥ 0.93 ≥ 0.93
Ingress Protection Class IP23 IP23 IP23
Cooling Forced Air Cooled Forced Air Cooled Forced Air Cooled
Dimension (L x W x H) mm 760 x 560 x 710 850 x 620 x 850 875 x 690 x 890
Weight kg 142 175 220
Confirm To IS 7931 [Part II] : 1975 IS 7931 [Part II] : 1975 IS 7931 [Part II] : 1975

Note : We reserve the right to modify the equipments and change the specifications without prior notice as a part of the continuous development research policy.

Scope & Applications

VULCAN MIG Welding equipment extends India’s most advance range of MIG/MAG Welding Systems into thin and medium applications, very useful for mild steel, stainless steel and aluminum welding. 250, 400 and 600 Amps. for heavy duty works, system designed to weld at costs far lower than conventional methods. More efficient with better economy.
