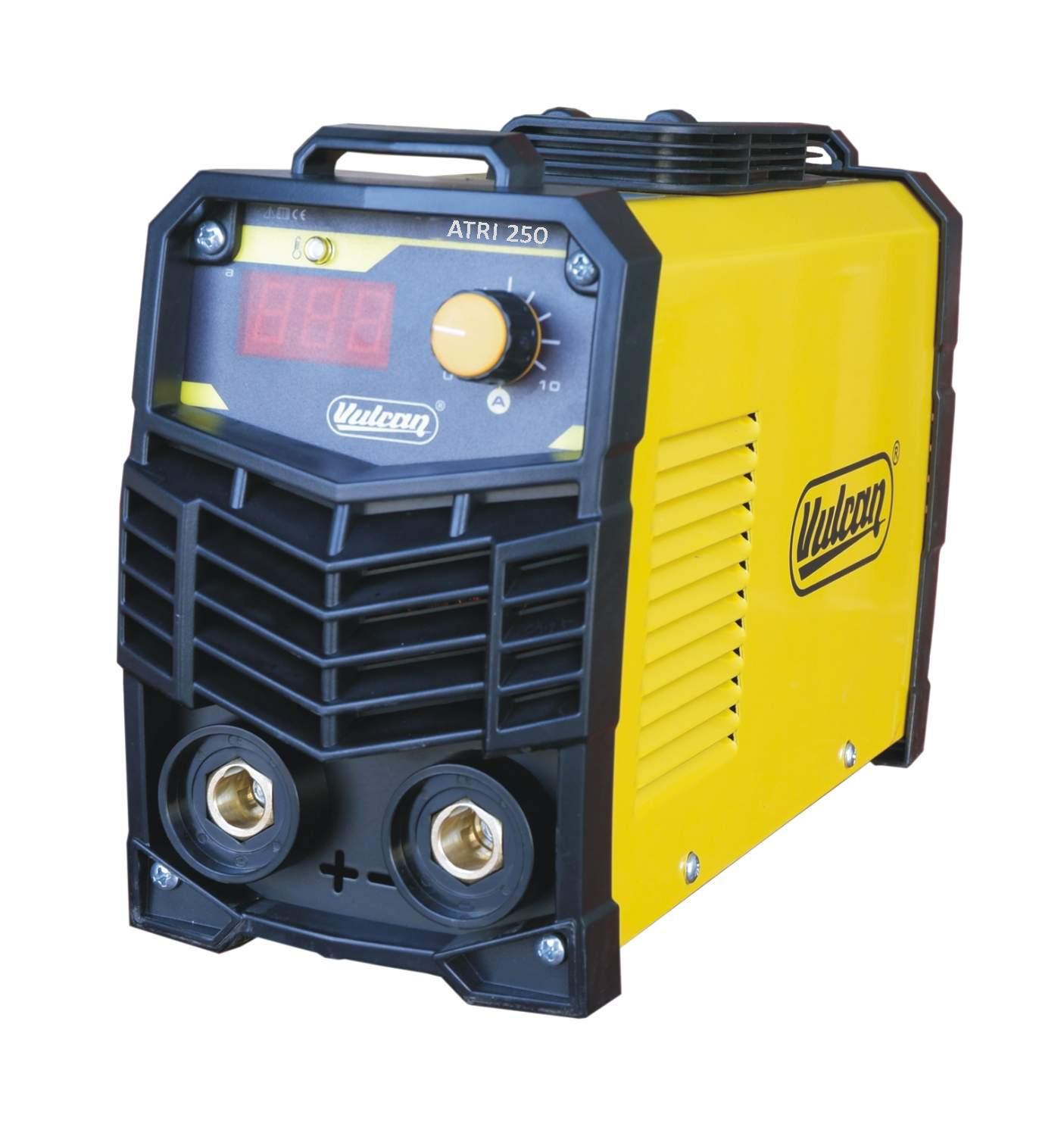

250 MMA – Arc Welding Machine, 250A, Single-Phase, Inverter

Machine Type Input Supply Output Type Output CC or CV Cooling Works on Power

Salient Features :

  • Portable, reliable MMA welding machines
  • High performance inverter technology
  • Highly power efficient
  • Welding current smoothly adjustable
  • Light weight and compact in size
  • Protection against thermal overloads

Specifications

Parameters Unit 250 MMA
Input Supply V 220 V ± 10%
Phase 1
Frequency Hz 50
Open Circuit Voltage (OCV) V 70
Insulation Class H
Welding Current Range A 20 – 250
Current Regulation Stepless
Duty Cycle % 60 %
Ingress Protection Class IP23
Cooling Forced Air Cooled
Dimension (L x W x H) mm 300 x 140 x 200
Weight kg 5.5
Confirm To IS 4559 : 1993

Note : We reserve the right to modify the equipments and change the specifications without prior notice as a part of the continuous development research policy.

Scope & Applications

“VULCAN” Welding is offering a Inverter Based ARC Welding Machines to our valuable clients. These indigenous machines provide exceptional welding quality and are designed with MOSFET/IGBT technology for improving their performance and life. In conformity with the concern of international quality standards, our offered machine is sourced from our reliable vendors of the reputed industry. The machine offered by us is also examined under the supervision of talented quality controllers to ensure their flawlessness. Range of is power saving, compact in size and light in weight. Qwing to their reliable performance, our offered machine is widely used in various engineering applications, Education, Maintenance, Repair, Fabrication, Ship building/ Installation Construction and in Foundries Industries.
