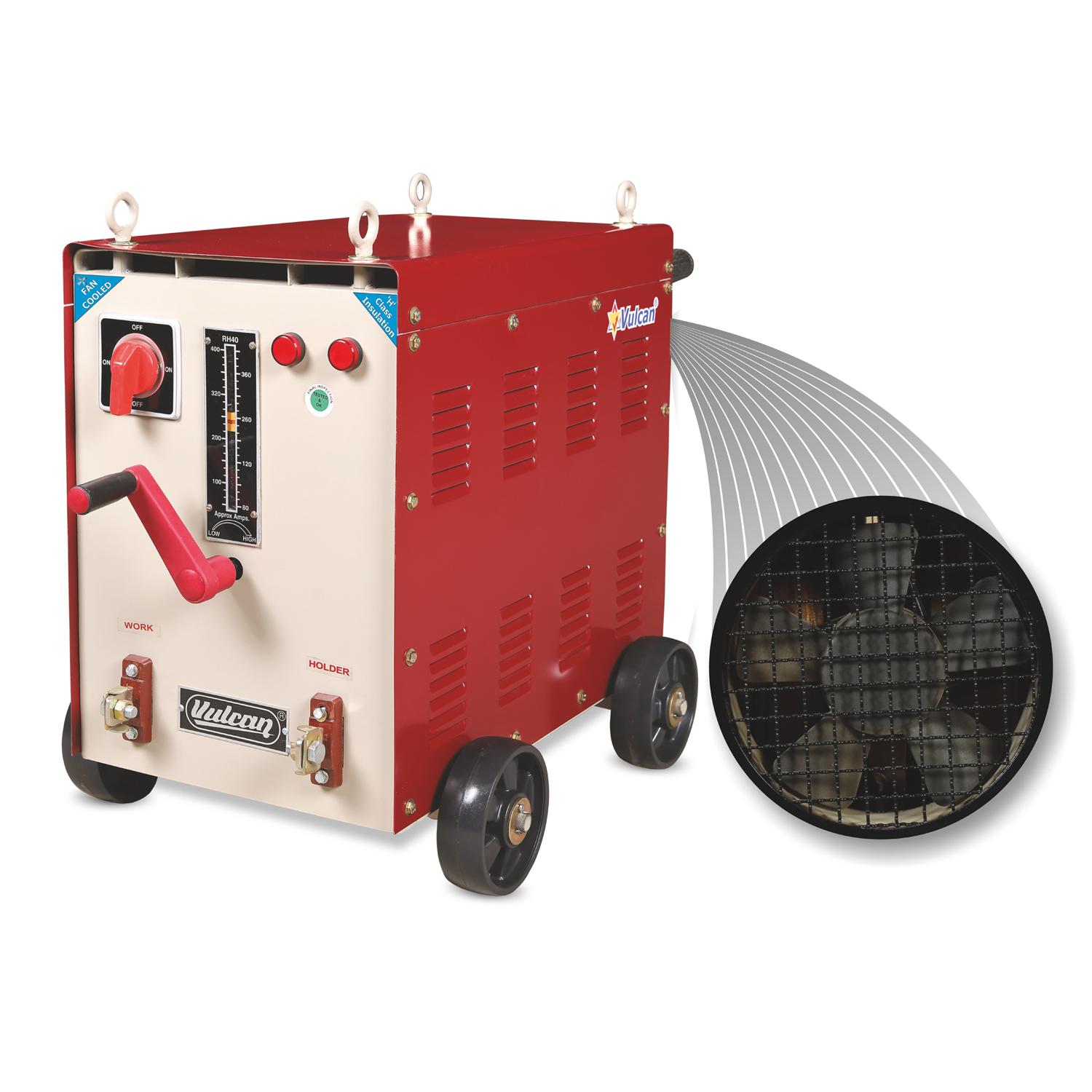

Regulator-Type ARC Welding Machine, 300–400A, Two-Phase, Fan Cooled, Transformer

Machine Type Input Supply Output Type Output CC or CV Cooling Works on Power

Salient Features :

  • Modern looks, novel design concepts.
  • Epoxy powder coated body for rust free long life.
  • Coil varnishing by vacuum pressurized impregnating varnishing system to enhance reliability and services life.
  • High efficiency, energy saving, low maintenance.

Specifications

Parameters Unit RH30FF RH40FF
Input Supply V 415 V ± 10% 415 V ± 10%
Phase 2 2
Frequency Hz 50 50
Open Circuit Voltage (OCV) V 60 60
Insulation Class H H
Welding Current Range A 60 – 300 80 – 400
Duty Cycle % 60 % 60 %
Ingress Protection Class IP21S IP21S
Cooling Forced Air Cooled Forced Air Cooled
Dimension (L x W x H) mm 810 x 520 x 655 810 x 520 x 655
Weight kg 105 125
Confirm To IS 1851 : 1997 IS 1851 : 1997

Note : We reserve the right to modify the equipments and change the specifications without prior notice as a part of the continuous development research policy.

Scope & Applications

  1. “VULCAN” heavy duty Regulator Type Welding Transformer are very effective for fast production, structural work, machine building & fabrication, filling jobs, worn-out machine parts repair. VULCAN moving shunt type machines are the swiftest to offer stepless regulation in welding current to match all operations while the stud type machines outperform, all in ruggedness in truly heavy-duty applications.
  2. Regulator type air-cooled welding transformers in 300 to 600 Amps. It fulfils the most of the requirements of AC welding and ideally suitable for most of the manual welding operations for indoor and outdoor uses. Especially, for various types of jobs with diverse current requirements from min. to max. are easily attended by these machines. The weld qualities of these machines are smooth and soft with minimum spatter.
  3. In addition, these are specially designed & manufactured for noiseless operations for the years of service, housed in a fabricated robust steel cabinet, mounted on 3 solid rubber tyre wheels. Welding current can be adjusted infinity in a current range for minimum to maximum with the help of a specially designed shunt to change flux linkage. The louvers ensure best and heavy duty welding.
  4. Standard models are available in Aluminium winding & copper winding with insulation class A or F. Power factor correction capacitor is provided against demand at extra cost. Oil cooled machines are supplied on specific order.
