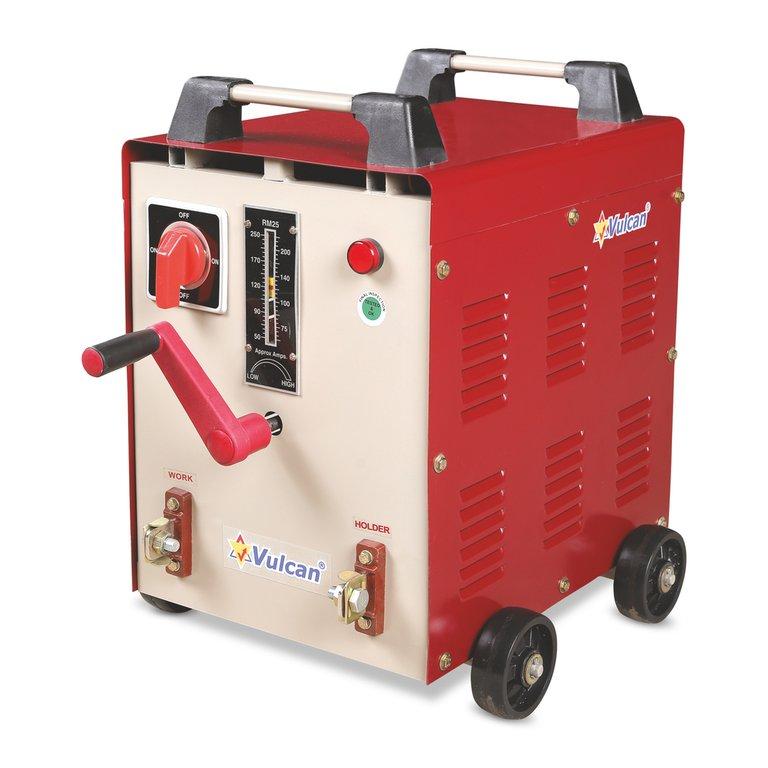

Regulator-Type ARC Welding Machine, 150–250A, Single/Two-Phase, Transformer

Machine Type Output Type Output CC or CV Works on Power

Salient Features :

  • Modern looks, novel design concepts.
  • Epoxy powder coated body for rust free long life.
  • Coil varnishing by vacuum pressurized impregnating varnishing system to enhance reliability and services life
  • High efficiency, energy saving, low maintenance

Specifications

Parameters Unit RM15AA RM15AF RM20AA RM20AF RM25AA RM25AF
Input Supply V 220/415 V ± 10% 220/415 V ± 10% 220/415 V ± 10% 220/415 V ± 10% 220/415 V ± 10% 220/415 V ± 10%
Phase 1/2 1/2 1/2 1/2 1/2 1/2
Frequency Hz 50 50 50 50 50 50
Open Circuit Voltage (OCV) V 50 50 50 50 50 50
Insulation Class A H A H A H
Welding Current Range A 45 – 150 45 – 150 50 – 200 50 – 200 50 – 250 50 – 250
Welding Electrode Size Min mm 1.6 1.6 1.6 1.6 1.6 1.6
Max mm 3.15 3.15 3.15 3.15 4 4
Duty Cycle % 30 % 30 % 30 % 30 % 30 % 30 %
Ingress Protection Class IP21S IP21S IP21S IP21S IP21S IP21S
Cooling Natural Air Cooled Natural Air Cooled Natural Air Cooled Natural Air Cooled Natural Air Cooled Natural Air Cooled
Dimension (L x W x H) mm 520 x 305 x 470 520 x 305 x 470 540 x 345 x 500 540 x 345 x 500 540 x 345 x 500 540 x 345 x 500
Weight kg 45 45 55 55 65 65
Confirm To IS 1851 : 1997 IS 1851 : 1997 IS 1851 : 1997 IS 1851 : 1997 IS 1851 : 1997 IS 1851 : 1997

Note : We reserve the right to modify the equipments and change the specifications without prior notice as a part of the continuous development research policy.

Scope & Applications

  1. “VULCAN” Regulator Type Mini Welder medium duty machines in 150, 200 & 250 Amps., Ratings are compact light weight arc welders used for repair and maintenance jobs in medium duty cycles, light fabrication works, light production jobs in farms, small workshops, automobile garage and repair workshops.
  2. Mini Welding Transformers works on 230 Volts 1 phase or 415 Volts 1 phase ( 2 lines of 3 phase supply), which Is generally available in factories, residential building and out door locations. It Is air cooled, structure and design and free from any maintenance worries.
  3. These transformers are designed for light/medium duty general purpose welding specially at garage, small workshop farms and light fabrication industries. These are lightweight and light duty Machines in 150, 200, 250 Amps. built with latest trends in design and manufacturing and tested to most stringent standards to offer years of trouble free service. The weld qualities of these machines are smooth and soft with minimum spatter.
  4. Extremely compact & lightweight machines, very easily manoeuvrable from job to Job. Although light in weight, suitable wheels and lifting handle also provided. Quite higher performance to cost ratio compared to any other machine in the market.
  5. Standard models are of aluminium windings with insulation class ‘F’ & also available in copper windings on customer’s demand. Welding current regulation is achieved by series choke and studs at suitable taps for better results.
  6. Its design is dependable, sturdy and fully attractive appearance, easy portability, and high efficiency because of use of high- grade materials. It is very easy to carry; this machine at places high above the ground. Welding at water tank on skyscraper or a tower presents no problems at all. It is laborious, time consuming and costly affairs to transport a bulky welding machine to distant work sight. Mini Welders removes this difficulty efficiently.
