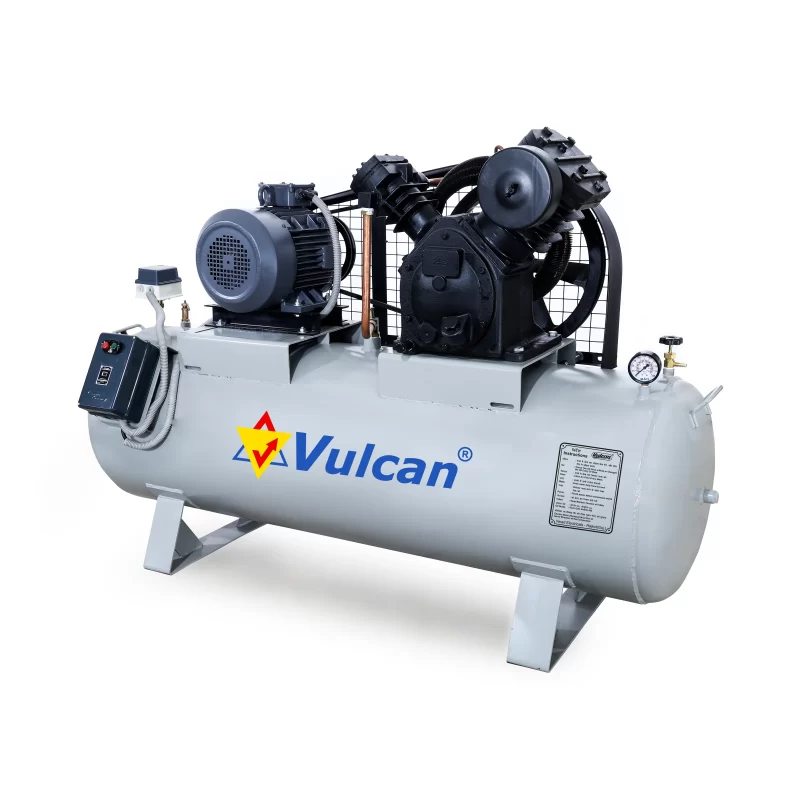

V Type Air Compressor, 400 – 500 PSI, Two Stage

Salient Features :

  • Modern looks, novel design concepts.
  • Heavy duty Industrial body for rust free long life.
  • High efficiency, energy saving, low maintenance

Specifications

Parameters Unit VE – 301 VE – 302 VE – 303 VE – 304 VE – 305 VE – 306 VE – 307 VE – 308
Stage Two Two Two Two Two Two Two Two
Number of Piston Double Double Double Double Double Double Double Double
Piston Displacement C.F.M. 9.79 9.79 17.3 17.3 29.8 29.8 36.35 17.3
Max Working Pressure Kg 12.3 12.3 12.3 12.3 12.3 12.3 12.3 12.3
Pressure psi 400 400 500 500 500 500 500 500
Tank Capacity Litre 175 200 175 200 240 300 300 240
Tank Size Inch 18 x 42 18 x 48 18 x 42 18 x 48 18 x 58 20 x 60 20 x 60 18 x 58
Piston Size mm 3″ + 1.75″ 3″ + 1.75″ 2.5″ + 4″ 2.5″ + 4″ 3″ + 5″ 3″ + 5″ 5.5″ + 3.5″ 2.5″ + 4″
Head Pulley Size Inch 12.5″ 12.5″ 14″ 14″ 18″ 18″ 18″ 14″
Motor Pulley Size Inch 6″ (B) 6″ (B) 6″ (B) 6″ (B) 7″ 7″ 9″ 6″ (B)
Tank Roll Thickness mm 3 4 3 4 4 4 4 4
Tank Decent Thickness mm 3 4 3 4 4 4 4 4
Tank Weight Kg 58.6 85.0 58.6 85.0 98.0 122.0 122.0 98.0
Head Weight Kg – – 64.5 – 96.5 – – –

Note : We reserve the right to modify the equipment and change the specifications without prior notice as a part of the continuous development research policy.

Scope & Applications

VULCAN heavy-duty Air Compressors are designed for high-performance applications in fast-paced production, structural work, machine building, fabrication, and equipment maintenance. Engineered for durability and reliability, VULCAN compressors deliver consistent air output to support a wide range of pneumatic tools and operations. With advanced regulation systems for optimal air pressure control and robust construction built for continuous use, these compressors excel in demanding, heavy-duty industrial environments.
