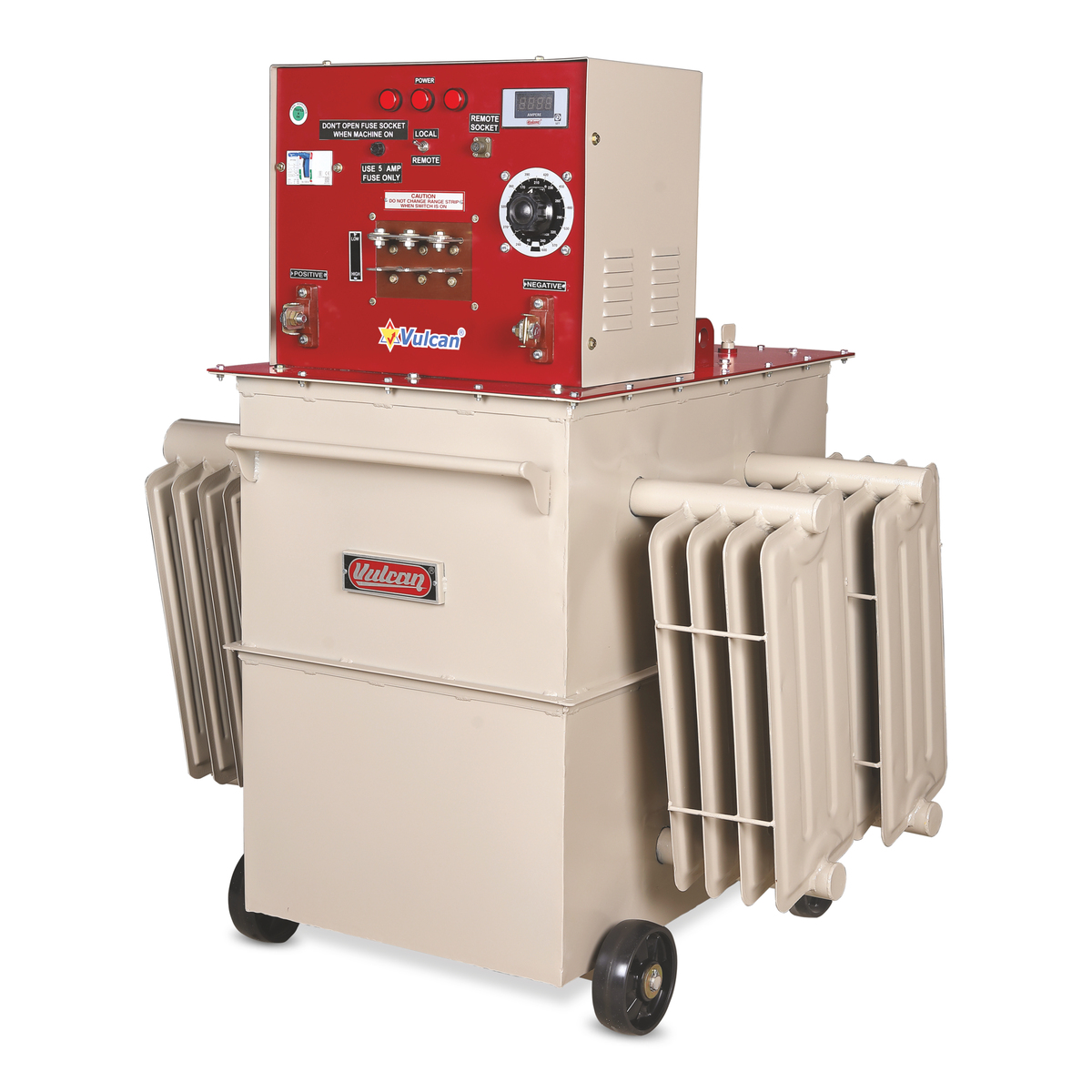

Welding Rectifier (Oil Cooled)

Welding Rectifier (Oil Cooled)

Machine Type Input Supply Output Type Output CC or CV Works on Power

Salient Features :

  • Useful for gouging process,
  • Stable Arc with easy droplet transfer.
  • Remote current control unit (Optional),
  • Reliable and Tropical Design.
  • Epoxy Powder Coated body for rust free long life.
  • Winding varnishing by vacuum pressurized impregnating system to enhance reliability and service life.
  • Superb Welding Performance with all type of alloy steel & 5. 5. Electrodes including 6010 cellulosic,
  • 7018 and 6013.

Specifications

Parameters Unit WR60TDO
Input Supply V 415 V ± 10%
Phase 3
Frequency Hz 50
Open Circuit Voltage (OCV) V 80
Insulation Class H
Welding Current Range A 30 – 600
Rated Input Power kVA 45
Current Regulation Stepless
Duty Cycle % 60 %
Power Factor ≥ 0.93
Ingress Protection Class IP23
Cooling Oil Cooled
Dimension (L x W x H) mm 400 x 1016 x 1025
Weight kg 435
Confirm To IS 4559 : 1993

Note : We reserve the right to modify the equipments and change the specifications without prior notice as a part of the continuous development research policy.

Scope & Applications

VULCAN Diode Type Welding Rectifiers Oil cooled, Smooth and Stepless output welding current controlusing state of the art transducting control technology, Radically new design for great power saving operation compared to old and obsolete type machines of all other brand. Excellent Weld characteristic with all types of electrodes, This Machine is very effective and useful in Investment casting riser cutting besides all other heavy fabrication work. Simple Operation can work with long welding cable.
